How to Measure the Correct Refrigerant Charge in an Air Conditioning System

Ensuring the correct refrigerant charge in an air conditioning (AC) system is vital for optimal performance, energy efficiency, and longevity of the unit. Undercharging or overcharging refrigeration can lead to system inefficiencies, increased wear and tear, and potentially costly repairs. In this article, we discuss how to measure the correct refrigerant charge in an air conditioning system and explain why it’s crucial to get it right.

Understanding the Importance of Proper Refrigerant Charge

Refrigerant is the lifeblood of an AC system, responsible for absorbing and releasing heat to cool indoor spaces. If the charge isn’t correct, the system can’t operate efficiently. An undercharged system may struggle to cool the area, leading to excessive energy consumption, while an overcharged system can damage the compressor and reduce the overall lifespan of the unit.

For both residential and commercial air conditioning systems, maintaining the right refrigerant level ensures optimal cooling and energy savings. By following the correct steps to measure and adjust the refrigerant charge, you can avoid unnecessary repairs and keep the system running smoothly.

Signs Your AC System Has the Incorrect Refrigerant Charge

Before diving into how to measure refrigerant levels, it’s important to recognise signs that your AC system might not have the correct charge:

• Inadequate cooling: If your AC is blowing warm air or not cooling efficiently, it may indicate low refrigerant levels.
• High energy bills: Increased energy consumption can be a sign of an overcharged or undercharged system.
• Frost buildup: Ice forming on the evaporator coil is often caused by low refrigerant levels.
• Hissing or bubbling sounds: These noises can indicate a refrigerant leak, leading to low charge.
• Frequent cycling: If the unit turns on and off frequently, it could be a result of improper refrigerant levels.

If you notice any of these signs, it’s essential to measure and adjust the refrigerant charge to avoid further damage.

Tools You Will Need to Measure Refrigerant Charge

Measuring refrigerant charge requires specific tools to accurately assess the pressure and temperature within the system. Before starting, make sure you have the following:

• Manifold gauge set: This tool measures the high and low side pressures in the AC system. A reliable gauge set is essential for accurate readings.
• Thermometer or temperature sensor: You’ll need to measure the system’s superheat or subcooling, depending on the method you’re using.
• Refrigerant scale: If you’re adding refrigerant, a scale helps ensure you add the correct amount based on the system’s specifications.
• Recovery machine and cylinder: If you’re removing excess refrigeration, these tools will safely store and recover the refrigeration.
• Protective gear: Always wear gloves and safety goggles to protect yourself from potential exposure to refrigerant, which can be harmful if it comes into contact with your skin or eyes.

Once you have these tools ready, you can begin the process of measuring and adjusting the refrigerant charge.

Methods for Measuring Refrigerant Charge in an AC System

There are several methods for measuring refrigerant charge, the two most common being the superheat method and the subcooling method. The method you use will depend on whether the system has a fixed metering device or a thermostatic expansion valve (TXV). Let’s go over these methods in more detail.

1. The Superheat Method (For Systems with Fixed Metering Devices)

The superheat method is typically used for air conditioning systems with fixed orifice metering devices, such as capillary tubes. Superheat refers to the difference between the refrigerant’s temperature at the evaporator’s outlet and the refrigerant’s boiling point.

Here’s how you measure superheat:

• Step 1: Connect your multiple gauges. Attach the low-pressure gauge to the suction line port (the larger line) and the high-pressure gauge to the high side of the system (the smaller line). Turn the AC on and allow it to run for about 10–15 minutes to stabilise.
• Step 2: Measure suction pressure. Using the low-pressure gauge, take the suction pressure reading. Convert this pressure reading to the corresponding saturation temperature using a refrigerant pressure-temperature chart.
• Step 3: Measure suction line temperature. Place your temperature sensor or thermometer on the suction line, about 6 inches from the evaporator, to get an accurate temperature reading.
• Step 4: Calculate superheat. Subtract the saturation temperature from the suction line temperature. The result is the superheat value.

If the heat is too high, it indicates low refrigerant levels, and you’ll need to add refrigerant. If the heat is too low, the system may be overcharged, and you may need to remove some refrigerant.

2. The Subcooling Method (For Systems with TXVs)

The subcooling method is used for systems with a thermostatic expansion valve (TXV). Subcooling refers to the temperature difference between the refrigerant leaving the condenser and its saturation point.

Here’s how you measure subcooling:

• Step 1: Connect your multiple gauges. As with the superheat method, attach the manifold gauges to the system’s high and low ports. Let the system run for 10-15 minutes.
• Step 2: Measure high-side pressure. Using the high-pressure gauge, take the reading from the discharge line, which will help you determine the refrigerant’s saturation temperature.
• Step 3: Measure liquid line temperature. Place your temperature sensor on the liquid line about 6 inches from the condenser’s outlet.
• Step 4: Calculate subcooling. Subtract the liquid line temperature from the saturation temperature to find the subcooling value.

If the subcooling is too high, it indicates too much refrigerant in the system. If it’s too low, the system may be undercharged, and refrigerant will need to be added.

How to Add or Remove Refrigerant from an AC System

Once you’ve determined whether the refrigerant charge is incorrect, you may need to add or remove refrigerant from the system. Here’s how to do it safely:

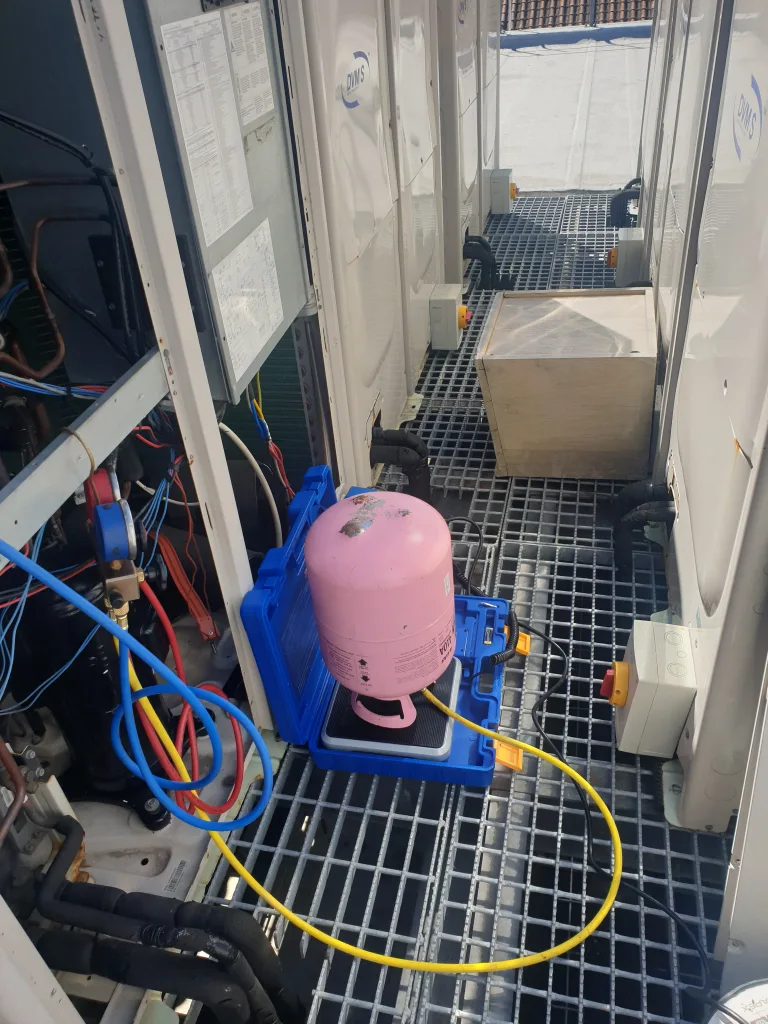

Adding Refrigerant

• Step 1: Attach refrigerant cylinder. Connect the refrigerant tank to the manifold gauge set, ensuring the valves are closed.
• Step 2: Open the low-side valve. Slowly open the low-pressure side valve to allow refrigerant to enter the system. Be cautious not to overcharge the system.
• Step 3: Monitor superheat or subcooling. As refrigerant is added, monitor the superheat or subcooling levels to ensure the correct charge is achieved.
• Step 4: Close the valve. Once the proper charge is reached, close the valve and disconnect the refrigeration cylinder.

Removing Refrigerant

• Step 1: Attach the recovery machine. Connect a refrigeration recovery machine to the system to safely remove the excess refrigerant.
• Step 2: Start the recovery process. Turn on the recovery machine and let it pull refrigerant out of the system.
• Step 3: Monitor subcooling or superheat. Once the refrigerant has been removed, recheck the system’s superheat or subcooling to ensure proper charge levels.
• Step 4: Safely dispose of refrigeration. Store the removed refrigerant in a recovery cylinder for proper disposal according to local regulations.

Best Practices for Maintaining Proper Refrigerant Charge

Measuring and adjusting refrigerant charge isn’t a one-time task. Regular maintenance is key to keeping the AC system running efficiently throughout its lifespan. Here are some best practices to follow:

• Perform annual inspections: Schedule yearly maintenance checks with a qualified HVAC technician to assess refrigerant levels and system performance.
• Check for leaks: If you frequently need to add refrigerant, your system may have a leak. Addressing leaks early can prevent refrigerant loss and costly repairs.
• Keep coils clean: Dirty coils can affect the system’s performance, leading to inaccurate refrigerant charge readings. Regularly clean the evaporator and condenser coils.
• Monitor energy bills: Sudden spikes in energy consumption could indicate refrigerant issues. Keep an eye on your bills for any unusual increases.

Conclusion

Measuring the correct refrigerant charge in an air conditioning system is critical for ensuring efficient operation, prolonging the unit’s lifespan, and preventing unnecessary energy consumption. Whether you’re using the superheat method for a fixed metering device or the subcooling method for a system with a TXV, maintaining the right refrigerant levels ensures your AC system performs at its best.

By following the proper procedures and using the correct tools, you can keep your AC system functioning efficiently, avoid costly repairs, and enjoy cool, comfortable air all summer long.
